应用
功能

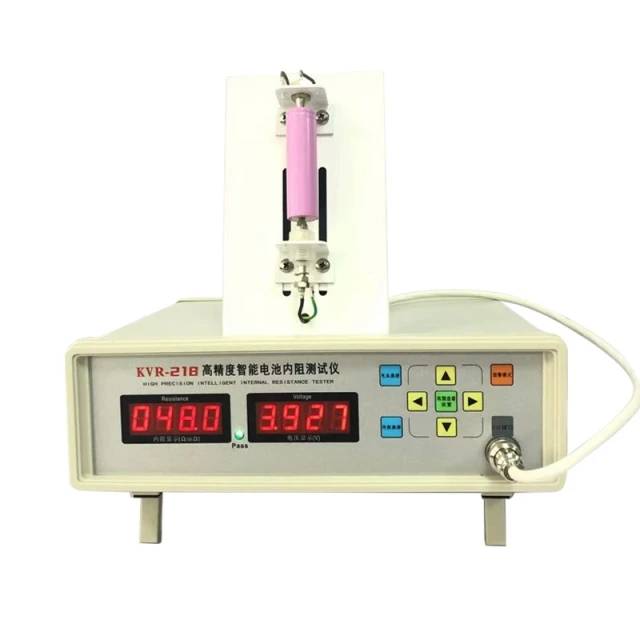

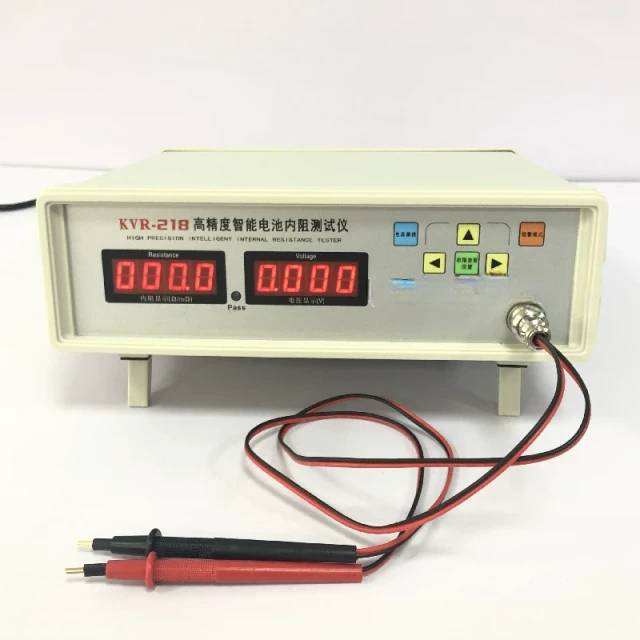

- 可同时以数字方式显示被测物体的内阻和电压参数。(测试架、测试引线和夹子均可使用）
- 可选择智能报警测试或普通测试模式。(普通测试只显示电压和内阻参数，智能报警测试可自动判断被测物的任一参数是否合格，同时给出声光提示，无需人工判断即可实现测试）。
- 数字显示上下限参数，直观清晰。
适用范围：
- 锂离子电池、锂聚合物电池和成品电池；
- 镍氢、镍镉电池；
- 铅酸蓄电池和免维护电池；
- 也适用于科研单位和生产厂家的各种电池研究试验。
细节与部件
技术规格
| 功能 | 测量范围 | 测量范围 | 分辨率 | 测量时间 | 精度 |
| 内阻 | 200mΩ | 2-200mΩ | 0.lm g | 10mS | ±0.5mΩ |
| 2Ω | 1mΩ-2Ω | ImΩ | 10mS | ± ImΩ | |
| 电压 | 5V | 0-4.999V | 0.001V | 10 毫秒 | ±0.001V |
| 50V | 0-49.99v | 0.0IV | 10mS | ±0.0IV |
