Introduction to Chemical Vapor Deposition (CVD)

Chemical Vapor Deposition (CVD) is a process that involves the reaction of precursor gases to produce a solid coating on a substrate. It is a versatile technique used in the production of various materials, including thin films. The process involves the use of high temperatures and vacuum conditions to ensure the deposition of a high-quality thin film coating. CVD is used in various industries, including the semiconductor industry, where it is used to produce thin films for electronic devices. The technology has come a long way since its inception, and it is constantly evolving with new techniques such as pulsed CVD being developed to improve the process.

Applying CVD to semiconductor thin films

Chemical Vapor Deposition (CVD) is a versatile technique that finds its application in the semiconductor industry for producing thin films of materials such as silicon, diamond, and graphene. In semiconductor applications, CVD is particularly useful for producing thin films of materials such as silicon, which is commonly used in the production of microprocessors and other electronic devices. The process is carried out in a vacuum chamber at high temperatures and low pressures to ensure the formation of a uniform and high-quality film.

What is Chemical Vapor Deposition (CVD)?

CVD is a bottom-up nanofabrication technique that builds a material from scratch, atom by atom by depositing and reacting the atoms on a surface. CVD is a technique that typically uses a lot of heat during its process and is known to be quicker than many other nanofabrication techniques. The process starts by feeding the reactants into the reactor before vaporizing them into a gas. This is often done using high temperatures or by a plasma, and the way in which the heating or plasma formation is performed is the usual differentiator between the techniques. The atoms in the gas are then fed into the reaction chamber by an inert carrier gas where they are deposited onto the substrate present in the reaction chamber.

Applying CVD to Semiconductor Thin Films

CVD is useful for many monoatomic materials such as graphene, but it can get more complex when it comes to semiconductor materials as they often contain either multiple metal atoms or metals with nitrogen atoms. The one example which is simpler is silicon, which is one of the earliest semiconductor materials known, and silicon thin films can be produced in a CVD reactor system from silane (SiH4). Silicon dioxide can also be produced by reacting the silane in the presence of oxygen.

The Benefits of CVD Thin Film Technology

The choice of precursors and deposition conditions can be tailored to achieve specific film properties such as thickness, morphology, and composition. By controlling the deposition conditions, CVD can be used to produce high-quality and defect-free films with precise control over their properties. In addition, CVD is a scalable, controllable, and cost-effective growth method for the bottom-up synthesis of two-dimensional (2D) materials or thin films such as metals (e.g., silicon, tungsten), carbon (e.g., graphene, diamond), arsenides, carbides, nitrides, oxides, and transition metal dichalcogenides (TMDCs).

In summary, CVD thin film technology is a versatile and powerful tool for producing high-quality thin films with a wide range of applications in the semiconductor industry. With its ability to tailor film properties to specific needs, CVD is an essential tool for researchers and engineers working in this field.

What are Thin Films?

Thin films are coatings deposited on the surface of a substrate material, ranging from fractions of a nanometer to several micrometers in thickness. These coatings can alter the surface properties of the substrate material, such as increasing durability, changing electrical conductivity, or improving optical properties. Thin films are a type of coating that can have a wide range of applications, from prolonging shelf life to enhancing the performance of electronic devices.

History of Thin Films

The history of thin solid films began in antiquity, with metallic films (usually gold platings) used on various artifacts for decorative and protective purposes. Today, many industries rely on precise atomic layer deposition to produce high-purity thin films.

Types of Thin Films

Different applications call for distinct types of thin films. These include:

• AR/HR (antireflective or high-reflectivity) coatings
• TCO (transparent conductive oxide) coatings
• DLC (diamond-like carbon) thin films
• Biocompatible hard coatings

Deposition Techniques

Thin film deposition techniques fall under the broad categories of physical vapor deposition (PVD) and chemical vapor deposition (CVD).

Physical vapor deposition involves vaporizing materials in a low-pressure chamber to deposit them upon a substrate. Films deposited by PVD can create highly durable, corrosion-resistant coatings that tolerate exposure to high temperatures.

On the other hand, CVD is a process that involves the deposition of thin films by introducing a reactive gas into a vacuum chamber. The gas then reacts with the heated substrate surface to deposit a film. The resulting thin film can have a wide range of properties, such as optical, electrical, and mechanical properties, depending on the deposition conditions used.

Applications of Thin Films

Thin films have a wide range of industrial applications, including thin-film solar cells, optical lenses with a high refractive index, anti-reflective optical coatings, semiconductor devices, light crystal displays, and more. They are also being applied to pharmaceuticals, via thin-film drug delivery.

In conclusion, thin films are an inseparable part of modern technology that have a wide range of uses. Understanding the basics of thin films and deposition technologies is important for anyone interested in the field of material science or engineering.

The History of Coating Technology

Coating technology has a long and rich history, dating back to the 1800s, when scientists began experimenting with various methods of coating materials. The first thin film coating was created using a process called electroplating, which involved immersing a metal object in a solution of dissolved metal ions and applying an electric current.

The Emergence of CVD

In the 1940s, Chemical Vapor Deposition (CVD) was developed as an alternative and more efficient method of coating materials. CVD is a thin film coating technology that has been in use for decades. It involves depositing a thin layer of material onto a substrate by introducing a gas or vapor into a reaction chamber. As the gas or vapor reacts with the substrate, it forms a solid layer of material on the surface.

Applications of CVD

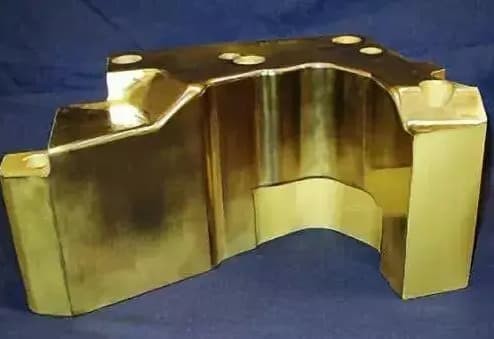

CVD thin film technology has since been used in a wide range of applications, from semiconductor manufacturing to the production of protective coatings for aerospace components. The advantages of CVD include the uniform coating of irregular surfaces and the ability to produce thin films of extremely high purity and density. However, the process parameters must be carefully controlled to achieve the desired properties of the coating, such as hardness or thermal resistance.

Comparison with PVD

The CVD process is often compared with Physical Vapor Deposition (PVD), which is another thin film deposition technology. PVD uses a vacuum chamber to vaporize a solid and deposit it onto a target substrate, atom by atom, via methods such as sputtering and evaporation. The result is an extremely thin, extremely pure coating, made using a technology that is more environmentally friendly than many other coating technologies.

Conclusion

In conclusion, coating technology has come a long way since its inception, with CVD and PVD being two of the most widely used techniques today. The history of coating technology shows that advancements in this field have been crucial in the development of many industries and materials. Today, CVD is a highly specialized field that requires extensive knowledge and expertise in materials science, chemistry, and engineering.

Vacuum Conditions for CVD

Chemical Vapor Deposition (CVD) is a popular technique for depositing thin films of materials on different surfaces. In CVD, a precursor gas is introduced into a vacuum chamber where it reacts with the substrate to form a thin film. The vacuum environment is crucial for the success of the technique.

Pressure Control

The pressure and gas flow rate need to be carefully controlled in CVD. If the pressure is too high, the gas molecules will collide with each other and not reach the substrate. On the other hand, if the pressure is too low, the gas molecules will not be able to reach the substrate at all. Atmospheric pressure CVD (APCVD), low-pressure CVD (LPCVD), and ultrahigh CVD vacuum are some of the operating conditions used for CVD.

Gas Flow Rate Control

Controlling the gas flow rate is also important to achieve successful CVD. The flow rates need to be in the laminar regime, and the shear forces slow the gas down resulting in a velocity gradient. Ultimately, the gas velocity drops to zero at the substrate, and a boundary layer is formed.

Temperature Control

Temperature control is a critical factor in CVD to ensure that the chemical reactions take place at the desired rate. The substrate needs to be heated to a specific temperature to activate the reaction between the precursor gas and the substrate. Hot wall CVD and cold wall CVD are two types of CVD processes used for temperature control.

Plasma Methods

Various plasma methods are also used in CVD. These include microwave plasma CVD, plasma-enhanced CVD (PECVD), remote plasma-enhanced CVD, low-energy plasma-enhanced CVD, atomic layer CVD, combustion CVD, and hot filament CVD.

Advantages of CVD over PVD

CVD has several advantages over Physical Vapor Deposition (PVD) processes. Firstly, CVD is carried out at significantly higher pressures than PVD, eliminating the need for high vacuum pumps. Another advantage of the higher pressure, combined with the laminar flow properties of CVD, is that deposition does not need to be in line of sight. This makes it possible to deposit conformal films on substrates with irregular surfaces or on large quantities of closely packed substrates.

In conclusion, understanding the vacuum conditions necessary for CVD is essential for creating high-quality thin films. By controlling the pressure, gas flow rate, and temperature, researchers can create precise and uniform films with a wide range of applications in various fields, such as electronics, optics, and biomedical engineering.

Pulsed CVD and its uses

Pulsed Chemical Vapor Deposition (PCVD) is a modified version of traditional CVD technology. During PCVD, pulses of gas are alternated with periods of evacuation, allowing for better control of the deposition process. This results in more uniform and precise films, making PCVD a popular choice in the production of electronic devices such as transistors and solar cells, as well as in the creation of coatings for tools and machinery.

How PCVD Works

PCVD works by introducing pulses of a gas mixture to a reaction chamber, followed by a vacuum evacuation. This cycle continues until the desired film thickness is achieved. The number of pulses required depends on the properties of the film being deposited and the desired thickness.

Benefits of PCVD

PCVD offers several advantages over traditional CVD, including improved film quality, increased deposition rates, and reduced material waste. The use of pulses allows for better control of the deposition process, resulting in more uniform and precise films. This is particularly important in the production of electronic devices where even minor variations in film thickness can cause significant issues.

Applications of PCVD

PCVD is used in a wide range of applications, including the production of electronic devices such as transistors and solar cells, as well as in the creation of coatings for tools and machinery. In the semiconductor industry, PCVD is often used to create films for gate dielectrics, which are essential components of MOS devices. Additionally, PCVD is used in the creation of coatings for tools and machinery, where the precise application of a coating is essential for optimal performance.

Conclusion

In conclusion, PCVD is a modified version of traditional CVD technology that offers several advantages over traditional methods. The use of pulses allows for better control of the deposition process, resulting in more uniform and precise films. This makes PCVD a popular choice in the production of electronic devices such as transistors and solar cells, as well as in the creation of coatings for tools and machinery. As a beginner in the field of CVD technology, it is important to understand the basic principles of PCVD and its applications. With its unique features and advantages, PCVD is a promising technology that can revolutionize the field of thin film deposition.

Notable Mention of Other Deposition Techniques

In addition to Chemical Vapor Deposition (CVD), there are other popular thin-film deposition techniques that are widely used in various industries. These techniques include Physical Vapor Deposition (PVD), Atomic Layer Deposition (ALD), and Molecular Beam Epitaxy (MBE).

Physical Vapor Deposition (PVD)

PVD involves the use of physical processes such as sputtering, evaporation, and ion plating to deposit thin films. This technique uses heat or sputtering to physically transfer materials to vacuum and then to the substrate. The material to be deposited is first vaporized from a solid form into plasma or ions. The target material is then transferred to the substrate surface and allowed to condense and grow into a film. PVD films are usually deposited with the substrate at relatively low temperatures.

Atomic Layer Deposition (ALD)

ALD is a type of thin film deposition that involves the sequential exposure of the substrate to two or more precursors. The precursors react with the substrate surface to form a thin film layer. This technique provides excellent control over the thickness and composition of the deposited layer. ALD requires high vacuum and relatively low temperatures compared to CVD.

Molecular Beam Epitaxy (MBE)

MBE is a technique that involves the deposition of thin films by the controlled evaporation of solid materials in a high vacuum environment. The materials to be deposited are heated and evaporated in a chamber, and the resulting vapor is directed onto a substrate, where it condenses and grows into a thin film. MBE provides excellent control over the thickness and composition of the deposited layers and is commonly used in the semiconductor industry.

While all of these techniques have their unique advantages and disadvantages, CVD remains one of the most widely used methods for depositing thin films due to its versatility and flexibility. However, the choice of technique depends on the specific application and desired film properties.

In summary, thin film technology has various deposition techniques that offer different advantages and disadvantages, from PVD which involves the use of physical processes, ALD that requires relatively low temperatures compared to CVD, and MBE that provides excellent control over the thickness and composition of the deposited layers. Each of these techniques has its unique qualities that make them useful for specific applications, and the choice of technique depends on the desired film properties.

Key Differences Between Thin Film and Thick Coating Depositions

Thin film deposition and thick coating depositions differ in several ways, including their thickness and level of control over the deposition process.

Thickness

The primary difference between thin films and thick coatings is the thickness of the deposited layer. Thin films typically range from a few nanometers to a few micrometers in thickness, while thick coatings can be several millimeters thick. This difference in thickness has implications for the physical and chemical properties of the deposited material.

Control

Another key difference is the level of control over the deposition process. Thin film deposition typically involves precise control over the temperature, pressure, and flow rate of the precursor gases, which allows for the creation of highly uniform and reproducible films. Thick coatings, on the other hand, may be deposited using a variety of techniques, including spray coating and electroplating, which may result in uneven coatings and less precise control over the final product.

Materials

Thin film deposition is versatile and can be used to deposit a wide range of materials, including metals, semiconductors, and ceramics. This makes it a valuable tool for a variety of applications, including electronics, energy storage, and biomedical devices. Thick coatings, on the other hand, are typically limited to a smaller range of materials due to the nature of the deposition process.

Advantages and Disadvantages

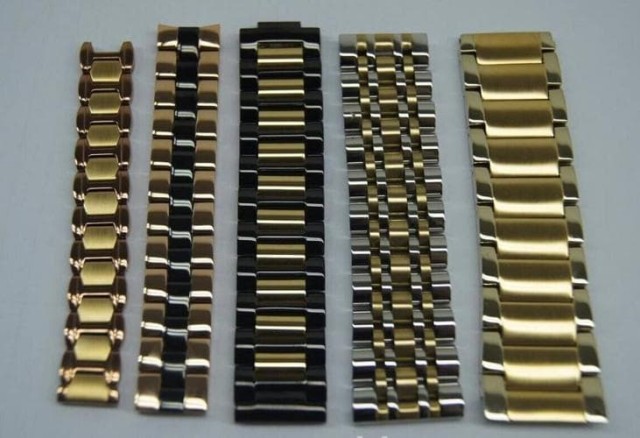

Thin films offer several advantages over thick coatings, including improved adhesion, corrosion and wear resistance, and increased durability. Moreover, thin films can offer a variety of aesthetic advantages, such as enhancing a substrate's appearance or making it more reflective. However, thin film deposition can be complex and requires specialized equipment and expertise, which may make it challenging for beginners to master.

Thick coatings, on the other hand, are generally easier to apply and can be less expensive than thin film deposition. However, they may not offer the same level of precision and control over the final product, and may not provide the same range of materials and properties as thin films.

In summary, understanding the key differences between thin film and thick coating depositions is important for anyone interested in the field of materials science and engineering, as it can help to inform the selection of appropriate deposition techniques for specific applications.

The Future of CVD and Thin Film Technology

With the rapid advancements in Chemical Vapor Deposition (CVD) thin film technology, the future of this field looks promising. Below are some of the key areas that researchers are exploring to drive the future of CVD and thin film technology:

Development of new precursors and deposition techniques

One of the key areas of focus for the future of CVD and thin film technology is the development of new precursors and deposition techniques. Researchers are working towards developing new precursors that will enable the deposition of more complex structures and the integration of multiple materials. This will enable the fabrication of new materials with unique properties and exciting potential applications.

Advancements in 2D materials

Another area of focus is the exploration of CVD for the fabrication of 2D materials such as graphene. These materials have potential applications in electronics and energy storage. Researchers are working towards developing new deposition techniques that will enable the fabrication of high-quality graphene films at a lower cost.

Integration with other technologies

CVD technology is also being integrated with other technologies to create new products and applications. For example, CVD is being combined with additive manufacturing to create new products with unique properties. This integration has the potential to revolutionize the manufacturing industry by enabling the creation of new products that were previously impossible to fabricate.

Industry-specific applications

CVD technology is being used in various industries such as electronics, energy, aerospace, and biomedical. As the demand for high-performance materials continues to increase, CVD thin film technology will play a vital role in meeting these needs. In the electronics industry, CVD technology is being used to fabricate thin films for integrated circuits and other electronic devices. In the energy industry, CVD technology is being used to fabricate thin films for solar cells and batteries. In the biomedical industry, CVD technology is being used to fabricate thin films for medical implants and other medical devices.

In conclusion, the future of CVD and thin film technology looks very promising, with researchers actively exploring new materials, deposition techniques, and integration with other technologies. As the demand for high-performance materials continues to increase, CVD thin film technology will play a vital role in meeting these needs.
